Welding strips

CEPRO welding strips:

  • available in a thickness of 2 and 3mm,
  • 300 mm wide
  • can be cut and punched to the desired size
  • can be supplied in either full rolls (50 meters long) or half rolls.
  • can be supplied with plastic CEPRO suspension clips that fit on a 35mm Ø pipe.
  • Approved in accordance with ISO EN 25980
Clear
SKU: N/A Categories: ,

Description

Welding strips offer the same visual protection. The choice is determined by the mechanical load which the separation is exposed to. We recommend using welding strips for large or frequent mechanical loads.

CEPRO transparent welding curtains are available in three colours:

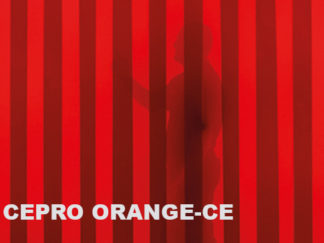

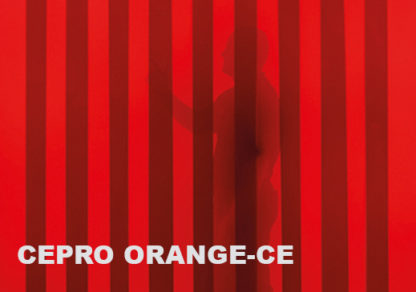

  • CEPRO ORANGE-CE

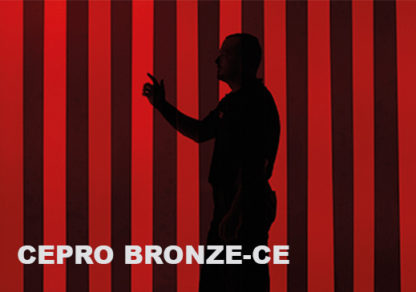

  • CEPRO BRONZE-CE

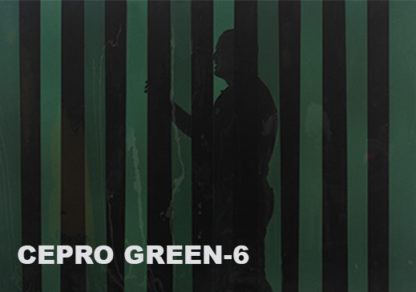

  • CEPRO GREEN-6.

All three colour types comply with EN ISO25980  standards and provide an excellent filter against hazardous welding light and also offer protection against irritating but non-harmful welding light. They not only provide a better overview of the working area but also make it safer and do not isolate the welder from the rest of the working area.

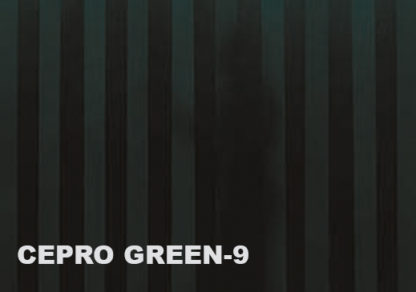

  • CEPRO GREEN-9

CEPRO GREEN-9 comply with EN ISO25980, they are translucent (opaque) but not transparent. This makes this type of welding curtain ideal for creating separate welding bays so welding radiation does not cause any hazard to other workers in their work space.

Technical Information

  • Minimum usage temperature approx. 5°C.
  • Maximum heat resistance approx. 80°C.
  • The welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks.
  • The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.
NameMeasurementsOrder number
Orange-CE welding strips uncut per full roll300 x 2 mm26.25.02.0050
Orange-CE welding strips uncut per full roll300 x 3 mm26.25.03.0050
Orange-CE welding strips cut to size and punched300 x 2 mm26.25.02.91
Orange-CE welding strips cut to size and punched300 x 3 mm26.25.03.91
NameMeasurementsOrder number
Green-9 welding strips uncut per full roll300 x 2 mm26.29.02.0050
Green-9 welding strips uncut per full roll300 x 3 mm26.29.03.0050
Green-9 welding strips cut to size and punched300 x 2 mm26.29.02.91
Green-9 welding strips cut to size and punched300 x 3 mm26.29.03.91



NameMeasurementsOrder number
Green-6 welding strips uncut per full roll300 x 2 mm26.26.02.0050
Green-6 welding strips cut to size and punched300 x 2 mm26.26.02.91



NameMeasurementsOrder number
Bronze-CE welding strips uncut per full roll300 x 2 mm26.27.02.0050
Bronze-CE welding strips cut to size and punched300 x 2 mm26.27.02.91

Certification

Cepro DownloadsCertificate – welding strips – Bronze-CE

Cepro DownloadsCertificate – welding strips- Green-6

Cepro DownloadsCertificate – welding strips- Green-9

Cepro DownloadsCertificate – welding strips – Orange-CE

Technical information

Cepro Downloads Technical sheet – welding strips
