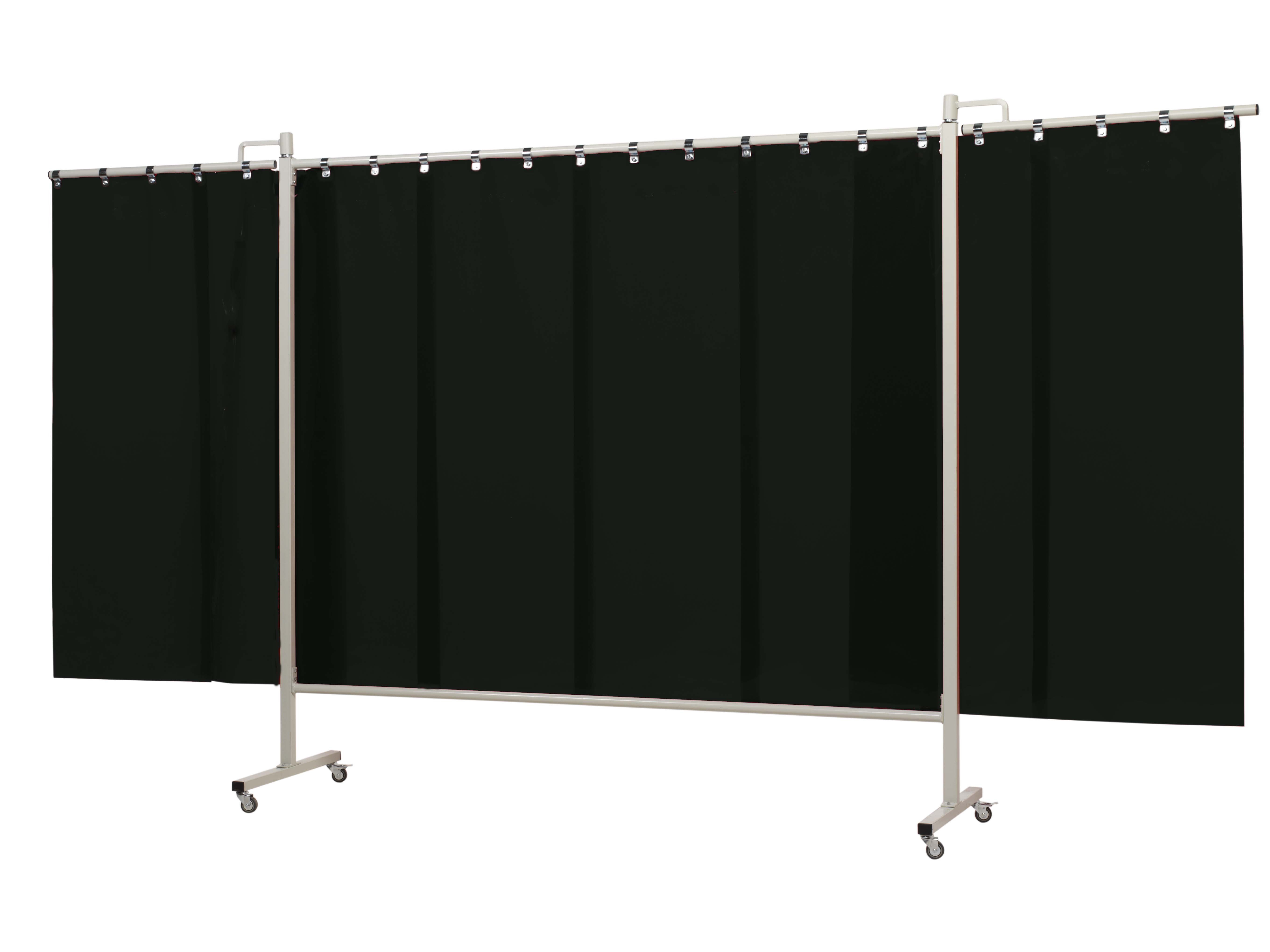

Omnium Triptych welding screen 375 cm with sheet

CEPRO Omnium welding screen 375 cm with sheet:
  • Height 200 cm
  • Width central section 215 cm
  • 2 swivel arms each 80 cm
  • Standard 4 swivel castors 50mm Ø
  • 2 swivel castors with brake and 2 without
  • RAL 7035 powder coating finish
  • Round 30 x 2 mm tube
  • Rectangular 40 x 30 x 2 mm tube
  • Sheet height 160 cm
  • Sheets 570 x 1 mm
  • Metal tube clamps
  • Sheet ISO EN 25980 approved
SKU: N/A Categories: ,

Description

CEPRO Omnium welding screens are sturdy and stylish. The CEPRO Omnium welding screen is an all-round welding screen and often used in difficult working conditions. Unless otherwise stated, all CEPRO welding screens are available as follows:

  • 200cm high
  • The frame is made from a round 30 x 2mm tube and a 40 x 30 x 2mm rectangular tube  RAL7035 grey powder coating finish
  • Provided with 4 swivel castors Ø 50mm, 2 with a brake

Available models

  • Single screen, 215cm wide
  • Triptych screen, 215cm wide + 2 swivel arms 80cm each
  • Triptych XL screen, 215cm wide + 2 swivel arms 110cm each

Technical information

  • The CEPRO Omnium welding screen is supplied as an assembly kit in a strong cardboard box.
  • CEPRO Omnium welding screens are designed for indoor use
  • The nuts and bolts used to connect the frame should be checked regularly
  • You should regularly check the CEPRO Omnium welding screen for tears and/or other damage. Replace damaged curtains or strips if necessary



NameOrder number
Cepro Orange-CE replacement sheet complete set2 x 22.15.16.0004
Cepro Green-9 replacement sheet complete set2 x 22.19.16.0004
Cepro Green-6 replacement sheet complete set2 x 22.16.16.0004
Cepro Bronze-CE replacement sheet complete set2 x 22.17.16.0004

Certification

Cepro DownloadsCertificate – welding screen – Omnium – Bronze-CE

Cepro DownloadsCertificate – welding screen – Omnium – Green-6

Cepro DownloadsCertificate – welding screen- Omnium – Green-9

Cepro DownloadsCertificate – welding screen – Omnium – Orange-CE

Technical information

Cepro Downloads Technical sheet – welding screen – Omnium Triptych
