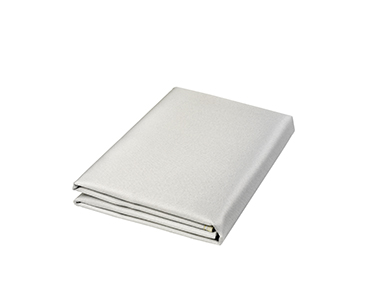

Atlas welding blanket

● Fibreglass cloth (filament)
● 2-sided PU-coating
● Temperature resistance 600 °C
● Peak temperature approx. 550°C
● Light welding and grinding work
● Material weight 720 gram/m²



Clear
SKU: N/A Categories: ,

Description

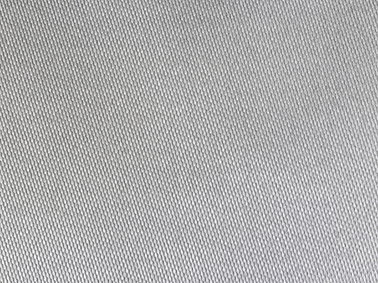

Atlas is a Thermo-E-Glas-Filament-Fabric wit a specially formulated grey fire-retardant PU-coating on both sides with aluminium pigments to  increase the antislip properties and resistance to fraying. The maximum application temperature is 550°C, shortly up to 600°C. Glasvezeldoek (filament)

Technical  Information

  • CEPRO recommends the use of multiple layers for maximum protection.
  • Always use welding blankets at an angle of at least 15 degrees.
  • The temperatures shown are only an indication.
  • The suitability of the selected product should always be tested beforehand.
  • Regularly check welding blankets for tears and or other damage.
  • Replace damaged blankets where necessary.
  • Welding blankets can be used for many purposes and therefore, no guarantee can be given on their use.
  • The end user is responsible for determining whether the welding blanket is suitable for use in a specific situation and whether it offers sufficient protection during the work to be performed.
  • CEPRO welding blankets are sewn on the cut edges with best quality Kevlar thread.

Custom-made Welding Blankets

The specifications for custom-made welding blankets are:

  • Sewn on the cut edges.
  • Minimum size available is 1m².
  • Maximum size available is 15m².
  • The minimum length per side is 100cm.
  • Welding blankets are made with 5cm tolerance on the provided measurements
  • Custom-made welding blankets are not returnable
NameMeasurementsOrder number
Width 100cmpart of a rol, not lock stitched56.50.05.1000
Width 100cmfull roll 25m¹56.50.05.1025
Width 150 mpart of a rol, not lock stitched56.50.05.1500
Width 150cmfull roll 50m¹56.50.05.1550
Made to sizelock stitched at the cutting borders56.50.10

Certification

Cepro DownloadsCertification – Welding Blanket – Atlas

Technical information

Cepro DownloadsTechnical sheet – welding blanket – Atlas
