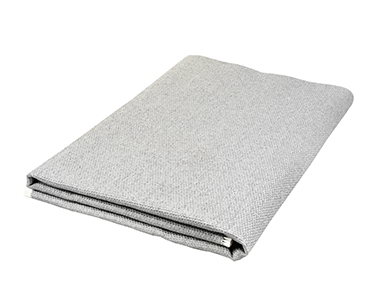

Athena welding blanket

● Fibreglass cloth (filament)
● 2-sided PU-coating
● Temperature resistance 550°C
● Peak temperature approx. 600°C
● Light welding and grinding work
● Material weight 470 gram/m²

Clear
SKU: N/A Categories: ,

Description

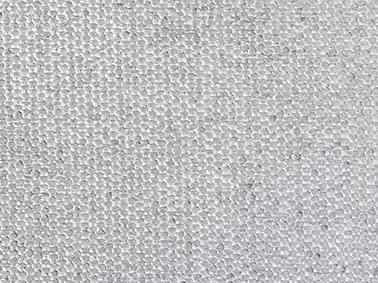

Athena is a Glas-Filament-Fabric with a specially formulated grey fire-retardant PU-coating on both sides with aluminium pigments to increase the antislip properties and resistance to fraying. The maximum application temperature is 550 °C, shortly up to 600°C. Athena is recommended for vertical use, for example as a welding and grinding curtain in situations in which high temperatures are reached, or as a welding blanket for situations in which less high temperatures are reached. Athena is free of asbestos.

Technical  Information

  • CEPRO recommends the use of multiple layers for maximum protection.
  • Always use welding blankets at an angle of at least 15 degrees.
  • The temperatures shown are only an indication.
  • The suitability of the selected product should always be tested beforehand.
  • Regularly check welding blankets for tears and or other damage.
  • Replace damaged blankets where necessary.
  • Welding blankets can be used for many purposes and therefore, no guarantee can be given on their use.
  • The end user is responsible for determining whether the welding blanket is suitable for use in a specific situation and whether it offers sufficient protection during the work to be performed.
  • CEPRO welding blankets are sewn on the cut edges with best quality Kevlar thread.

Custom-made Welding Blankets

The specifications for custom-made welding blankets are:

  • Sewn on the cut edges.
  • Minimum size available is 1m².
  • Maximum size available is 15m².
  • The minimum length per side is 100cm.
  • Welding blankets are made with 5cm tolerance on the provided measurements
  • Custom-made welding blankets are not returnable
NameMeasurementsOrder number
Width 100cmpart of a rol, not lock stitched56.52.02.1000
Width 100cmfull roll 50m¹56.52.02.1050
Made to sizelock stitched at the cutting borders56.52.20

Certification

Cepro DownloadsCertificate – Welding Blanket – Athena

Technical information

Cepro DownloadsTechnical sheet – welding blanket – Athena
